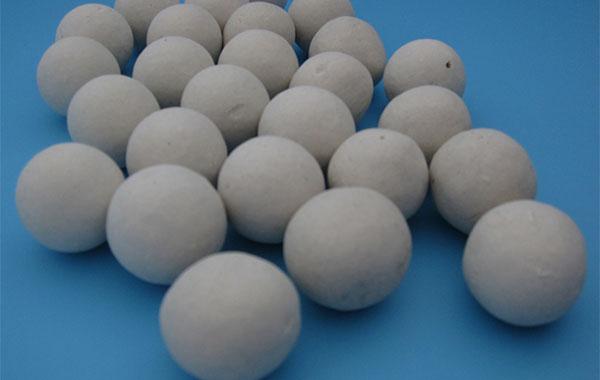

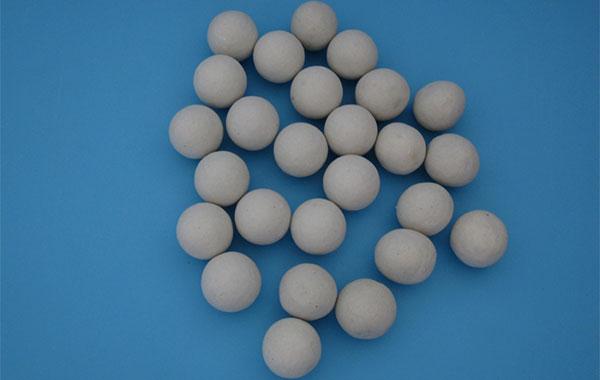

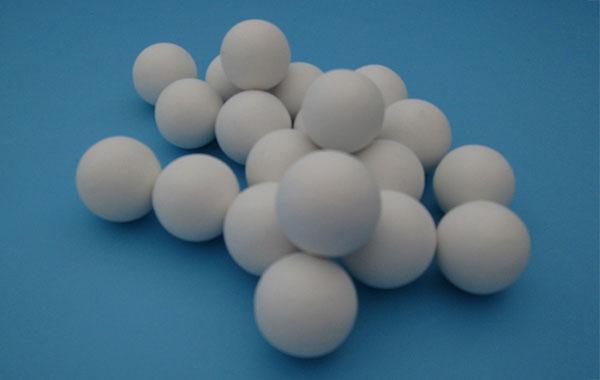

Inert Alumina Ceramic Ball

The alumina inert ball is characterized by high temperature resistance, high pressure resistance, low water absorption rate and chemical stability. The inert alumina ceramic ball is mainly used for increasing distribution of gas and liquid, and supporting catalysts whose activity are not too high.

An extensive application of inert ceramic ball is found in hydrocracking device, refining unit, catalytic reforming device, isomerization unit and demethylation device in petrochemical plants, chemical fiber plants, alkyl benzene plants, aromatic plants, ethylene plants and natural gas plants.

Technical Parameters of Inert Alumina Ceramic Ball

Items		Feldspar	Feldspar-mullite	Mullite	Mullite-corundum	Corundum
Properties		Feldspar	Feldspar-mullite	Mullite	Mullite-corundum	Corundum
Chemical constituents, %	Al₂O₃	20-30	30-45	45-70	70-90	≥90
	Al₂O₃ + SiO₂	≥90
	Fe₂O₃	≤1
Water absorption, %		≤5
Acid resistance, %		≥98
Alkali resistance, %		≥80	≥82	≥85	≥90	≥95
High temperature resistance, ℃		≥1300	≥1400	≥1500	≥1600	≥1700
Crushing strength, N/particle	Φ ３	≥120	≥140	≥150	≥160	≥200
	Φ ６	≥400	≥420	≥440	≥480	≥500
	Φ ８	≥480	≥520	≥600	≥620	≥650
	Φ10	≥600	≥700	≥800	≥900	≥1000
	Φ13	≥1000	≥1100	≥1300	≥1500	≥1800
	Φ16	≥1500	≥1600	≥1800	≥2300	≥2600
	Φ20	≥1800	≥2000	≥2300	≥2800	≥3200
	Φ25	≥2500	≥2800	≥3200	≥3600	≥4000
	Φ30	≥3000	≥3200	≥3500	≥4000	≥4500
	Φ38	≥4000	≥4500	≥5000	≥5500	≥6000
	Φ50	≥6000	≥6500	≥7000	≥8500	≥10000
	Φ75	≥10000	≥11000	≥12000	≥14000	≥15000
Bulk density, kg/m³		1300-1400	1400-1500	1500-1600	1600-1800	≥1800

Note: Bulk density is just for reference.

Diameter, Φ	3	6	8	10	13	16	20	25	30		38	50	75
Diameter tolerance, mm	±1.0				±1.5					±2.0			±3.0
