Plastic random packing designed by Hualian features light weight, thermal resistance, chemical corrosion resistance, high porosity, low pressure drop, small height of transfer unit, high flooding point, sufficient gas-liquid contact and high mass transfer efficiency. Available plastic types are PP, PE, RPP, PVC, CPVC, PVDF and etc.
Applications of Plastic Random Packing
An extensive application of plastic random tower packing is found in such industries as petroleum, chemical engineering, chlor-alkali, coal gas and environmental protection, with an usage temperature of 60-280℃.
Plastic Random Packing Options

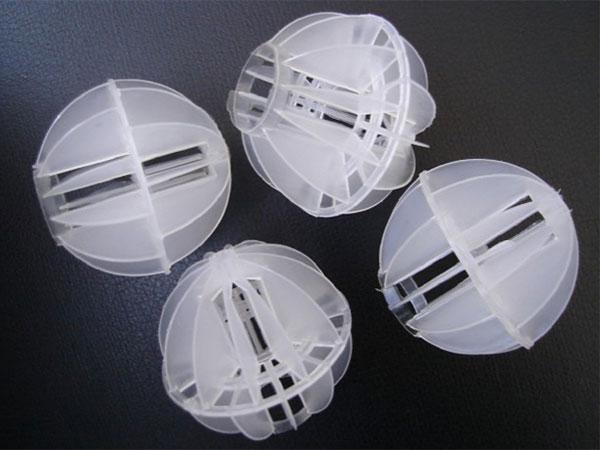

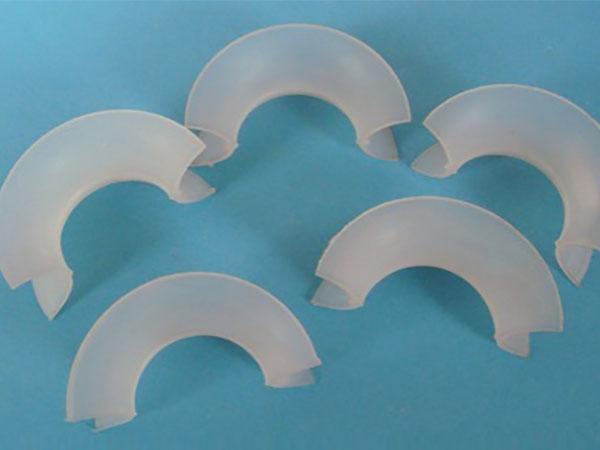

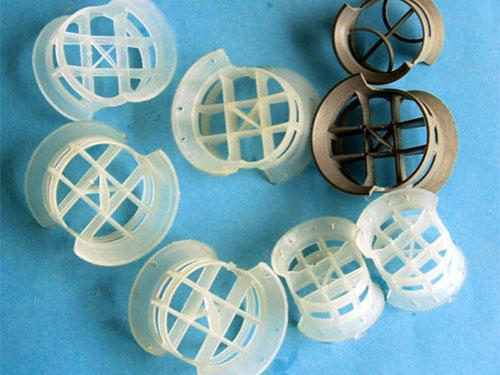

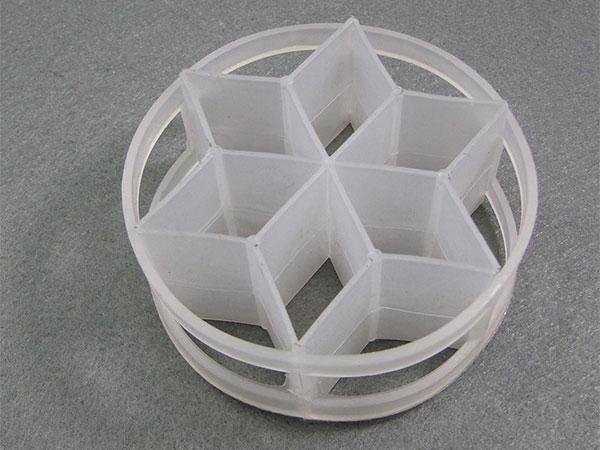

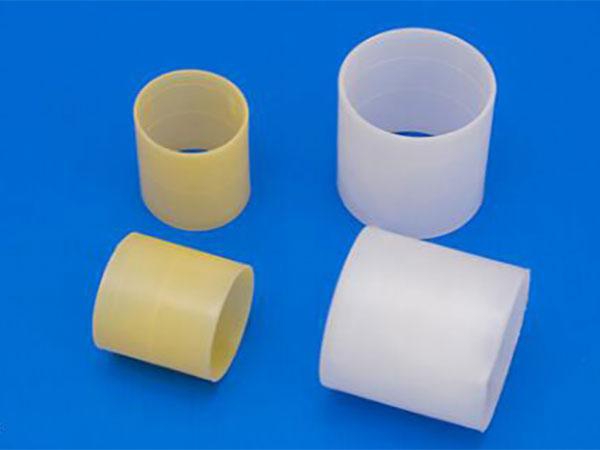

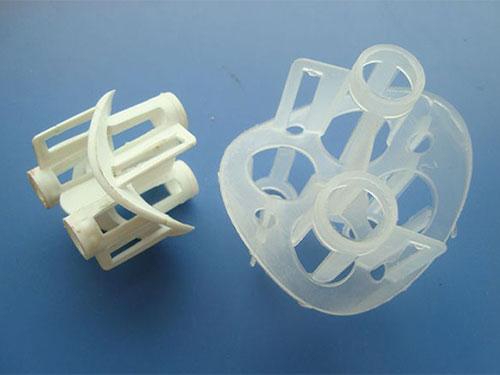

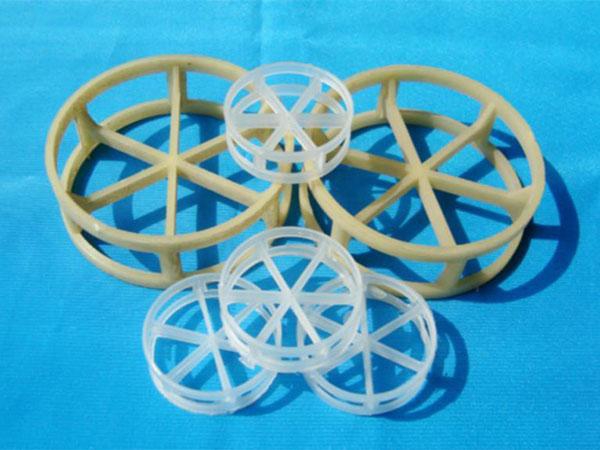

Ball, cascade mini ring, conjugate ring, pall ring, IMTP ring, super intalox saddle, super mini ring, raschig ring, snow ring, tellerette, bio ring, nutter ring, etc.
The packing shape and material can be decided by customer.
Technical Parameters of Plastic Random Packing| ItemsProperties | PE | PP | RPP | PVC | CPVC | PVDF |
| Density, g/cm3 | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
| Usage temperature, ℃ | 90 | >100 | >120 | >60 | >90 | >150 |
| Chemical resistance, % | Corrosion resistance | Corrosion resistance | Corrosion resistance | Corrosion resistance | Corrosion resistance | Corrosion resistance |
| Crushing strength, m/mm | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 |
