Ceramic tower packing has excellent acid and heat resistance, except hydrofluoric acid outside the capability of various inorganic acids, organic acids and organic solvents, corrosion can be a variety of high-temperature, low-temperature occasions.
Ceramic random packing possesses wonderful resistance to acid and heat and can bear a wide range of mineral acids (hydrofluoric acid excluded), organic acids and organic solvents. This distillation column packing material is suitable for low-temperature and high-temperature environments.
Applications of Ceramic Random Packing
The ceramic tower packing is widely applied in drying towers, absorption towers, cooling towers and regenerating towers etc. A good reputation is established in chemical industry, smelting industry, coal gas industry and oxygen generation industry, etc.
| Name | Size (mm) | Specific surface area (m2/m3) | Porosity (m3/m3) | Bulk density (kg/m3) | Bulk number (n/m3) |

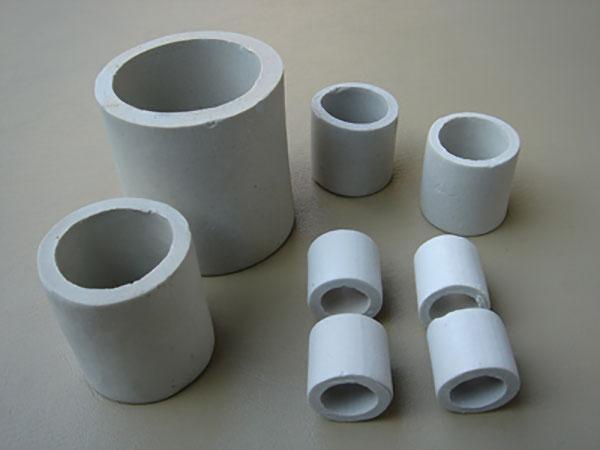

| Raschig ring | 25×25×3 | 25 | 0.68 | 595 | 19000 |
| 50×50×5 | 120 | 0.79 | 457 | 8000 | |

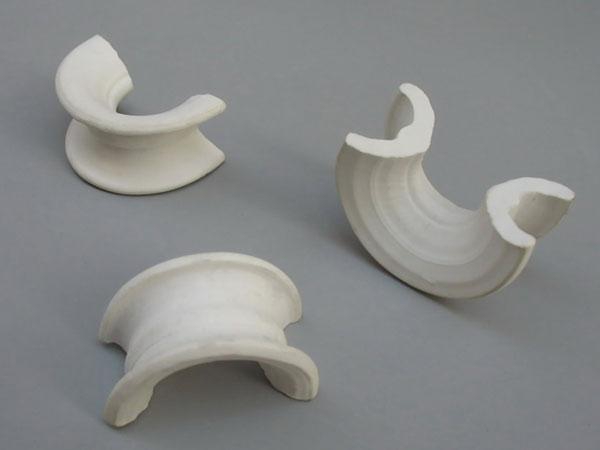

| Intalox super saddle | ∮25 | 238 | 0.78 | 580 | 76500 |
| ∮38 | 151 | 0.79 | 480 | 24600 | |
| ∮50 | 133 | 0.81 | 460 | 9500 | |
| ∮76 | 107 | 0.77 | 552 | 2830 | |

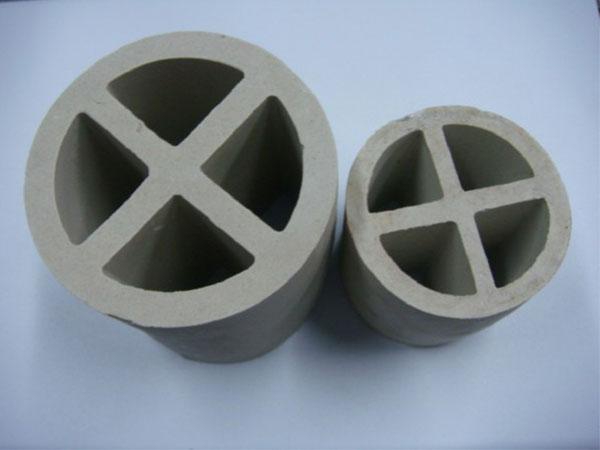

| Cross ring | 80×8 | 120 | 0.54 | 916 | 1950 |
| 100×10 | 110 | 0.53 | 930 | 1000 | |
| 150×15 | 60 | 0.58 | 960 | 296 | |

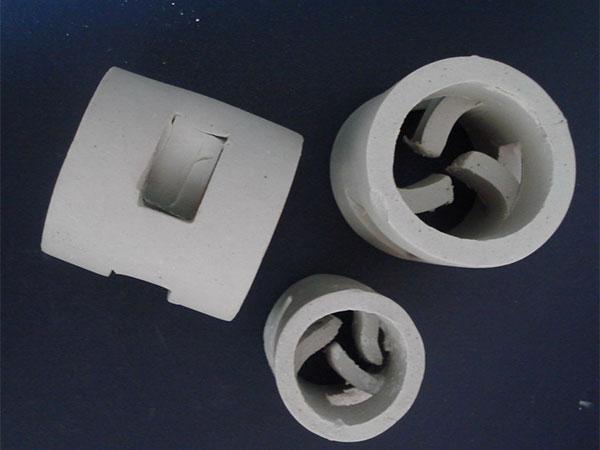

| Pall ring | 25×3 | 260 | 0.78 | 595 | 64000 |
| 50×5 | 130 | 0.82 | 457 | 8000 | |
| IMTP ring | 13 | 545 | 0.71 | 690 | 735000 |
| 16 | 438 | 0.70 | 700 | 365099 | |
| Cascade mini ring | 25×20×3 | 350 | 0.74 | 588 | 98000 |
| 80×50×8 | 96 | 0.74 | 590 | 3020 |
